Bosco woods 4 Playgrounds

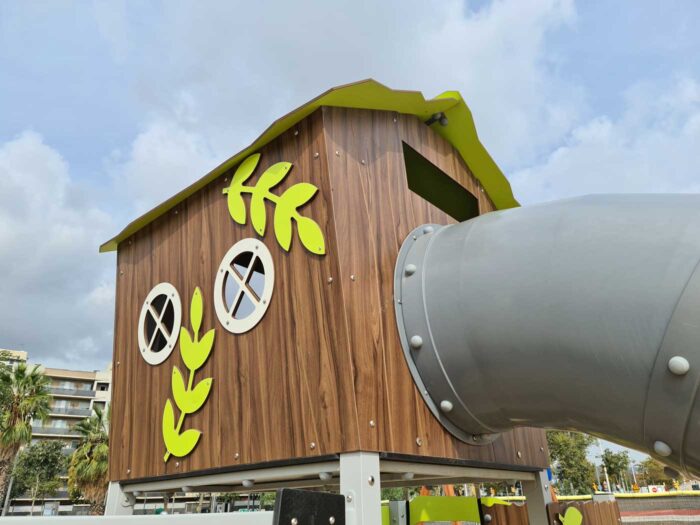

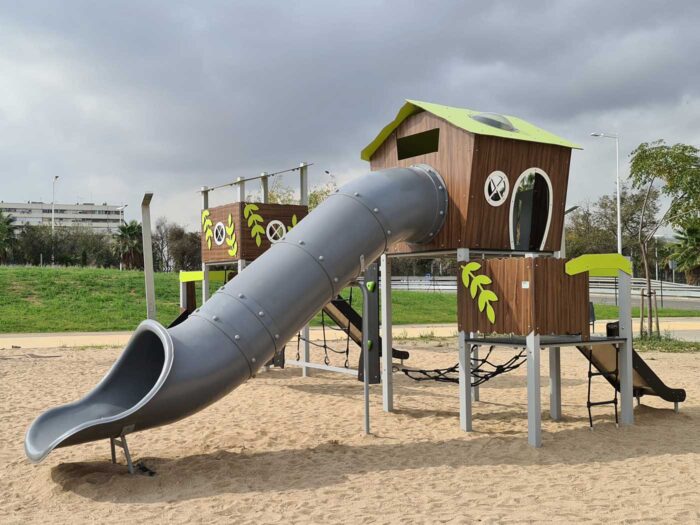

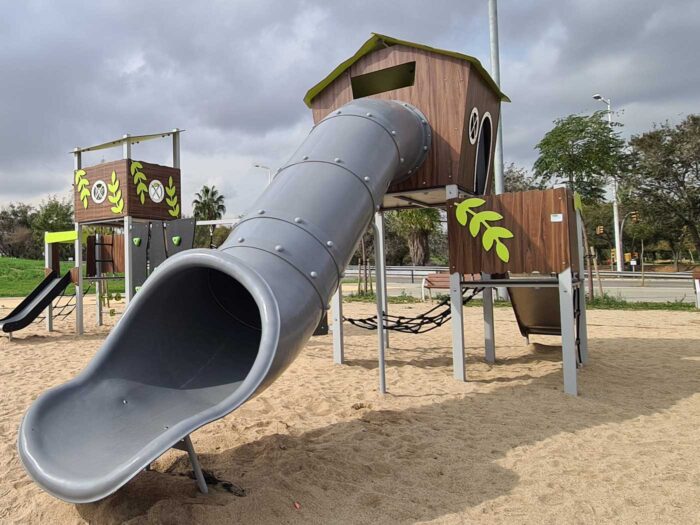

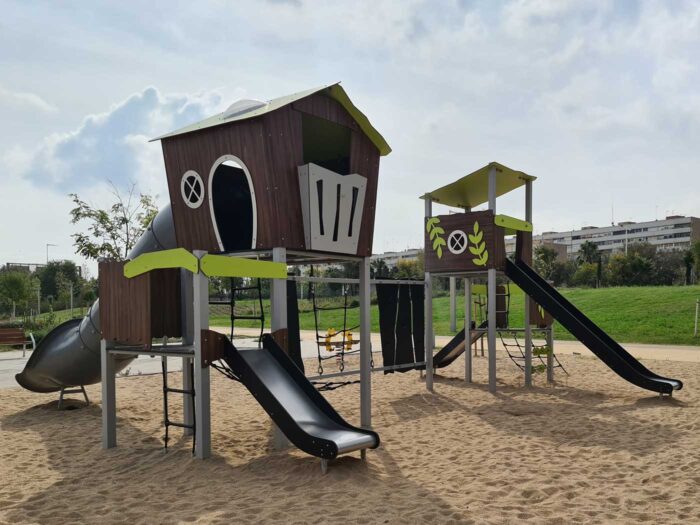

Bosco 4 is a big playground with several activities for the kids. It has slides, ladders, platforms, climbing nets and a tube slide. And on top of that, the playground looks just like several tree houses connected to each other.
POLES, Metal: We use a variety of metal compounds which are resistant to corrosion, wear and vandalism. Hot-galvanized steel and painted RAL 9006.
PANELS, HPL: Outdoor High Pressure Laminated sheet of 12 mm. Illustrations directly printed on the panels. Material specially manufactured for outdoor use. UV rays protection. Fire resistant. Easy maintenance.
FLOOR, Phenol: Birch plywood overlaid with a phenol film on both sides. The top side has a rough wire mesh to ensure the anti-slip surface. The wire mesh surface has high wear resistance and anti-slip properties, surface is weather- and water-proof, resists to commonly used chemicals. In addition, the product is environmentally friendly. The phenol film is hot-pressed onto the surface and is composed of a basic paper which is impregnated with phenol resin. The UV resistant film is impregnated with special thermosetting mixture of polymers containing resins.
Metallic Parts: Steel S-235, AISI-304 or AISI-316, zinc and lacquered steel and anodized aluminium EN AW-6063.
Fixings: Steel conforming to 8.8 DIN267, AISI-304 or AISI-316.
VariationsTech specs
MeasurementsLength: 11050 mm
Width: 12120 mm
Height: 3400 mm
MaterialsHPL
Phenolic plywood
Hot-galvanized steel, zinc, lacquered steel, anodized aluminium
InstallationConcrete foundationLogin
